PeridectPlus Perimeter Intrusion Detection System
A plugin integrating the Peridect+ Perimeter Intrusion Detection System (PIDS) with XProtect VMS.
Updated on Sunday, June 19, 2022
Peridect+ Connector Plugin and DSP sensors placed on the fence around the object create advanced and reliable perimeter protection system. Thanks to triggered User-defined Events it is possible i.e. to trigger PTZ presets in case of alarm and visualization of the violation place on the map.
What is needed
From PRODUS S.A.
-
Control Unit PERIDECT-CUP+
-
Peridect+ Connector for Milestone XProtect
From Milestone Systems
-
Milestone XProtect
Overview
How it works
How to install
Overview
PeridectPlus Perimeter Intrusion Detection System - A plugin integrating the Peridect+ Perimeter Intrusion Detection System (PIDS) with XProtect VMS.
The integration of the perimeter protection system with the VMS Milestone XProtect system gives enormous possibilities in the area of immediate alarm detection, violation of the protected zone, transmission of alarm data to the VMS system in less than 3 seconds and visualization in the superior VMS Milestone XProtect system.Integration at the software level gives the opportunity to build any algorithms for the operation of the VMS system by, for example, controlling PTZ camera presets, displaying actions on alarm monitors, event and alarm recording of video materials in a given camera observation zone, or visualization of statuses and alarms generated by the PERIDECT+ system on the map of protected site.
The PERIDECT+ Connector plugin has been integrated with all versions of the VMS Milestone XProtect system. It works by assigning the license of a given CUP+ unit to the appropriate XProtect software license.
Key features
- Monitoring of Peridect+ system states in the Event Manager of Milestone XProtect software: connection error reporting, redundancy functions etc.
- Configuration of connection and system structure (SafeGuarded line / loop architecture) through the XProtect Management Client configuration plugin
- Visualization of alarm signals from DSP+ detectors and LIP+ modules on the map in XProtect Smart Client
- Manual or automatic assignment of alarm and technical states (faults) to User-defined Events
- Triggering any action (rules) i.e. changes on the alarm monitor, PTZ camera rotation etc. through User Defined Events
How it works
1 of 8

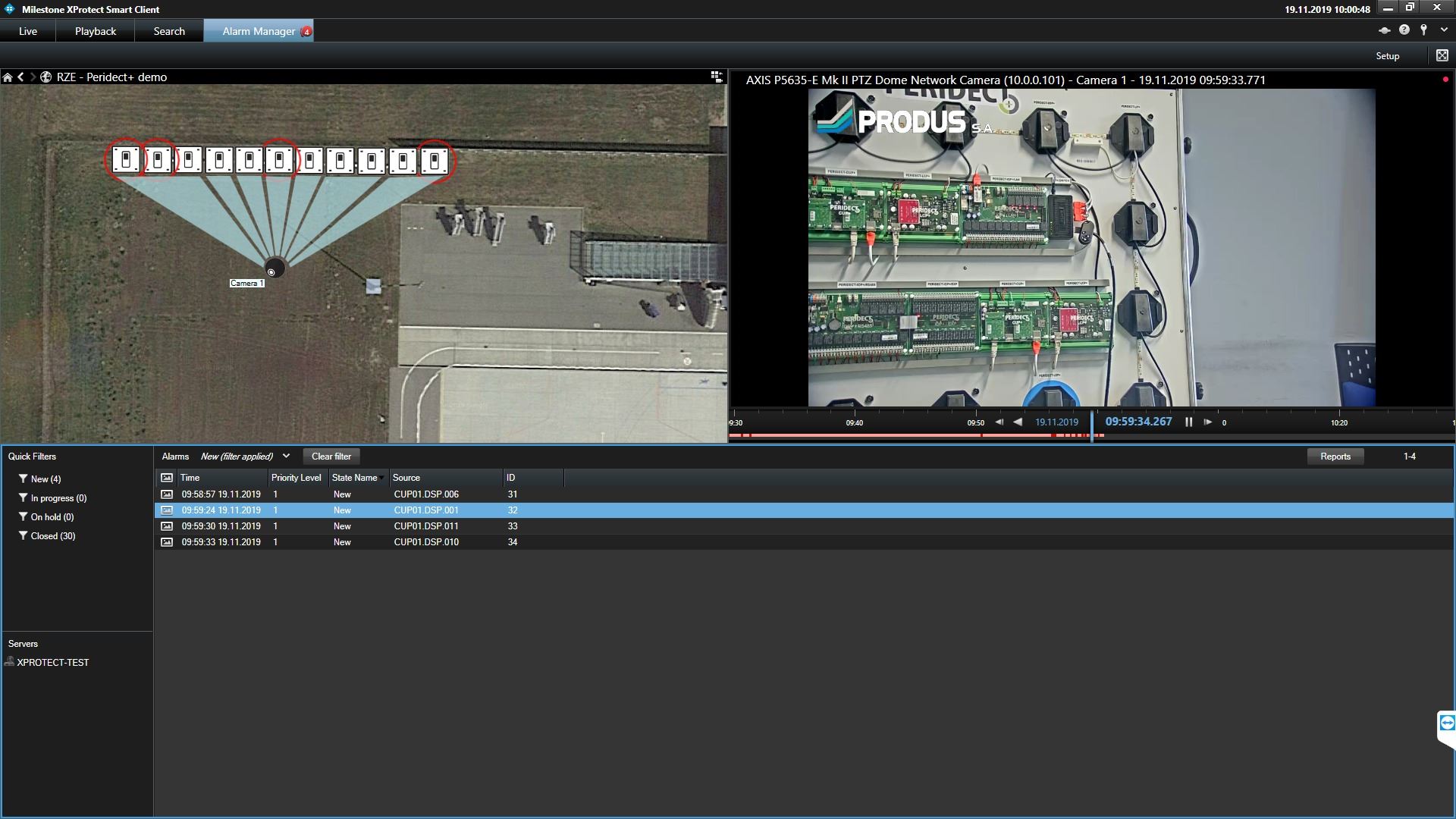

Example Alarm Manager view. Events generated by Peridect+ sensors may be used to trigger alarms, PTZ presets map visualization and more.
2 of 8
Live view of the status maps and camera assigned to the perimeter zones.
3 of 8
Alarm from individual sensor triggers PTZ preset assigned to exact alarm spot, allowing quick alarm verification by operator.
4 of 8

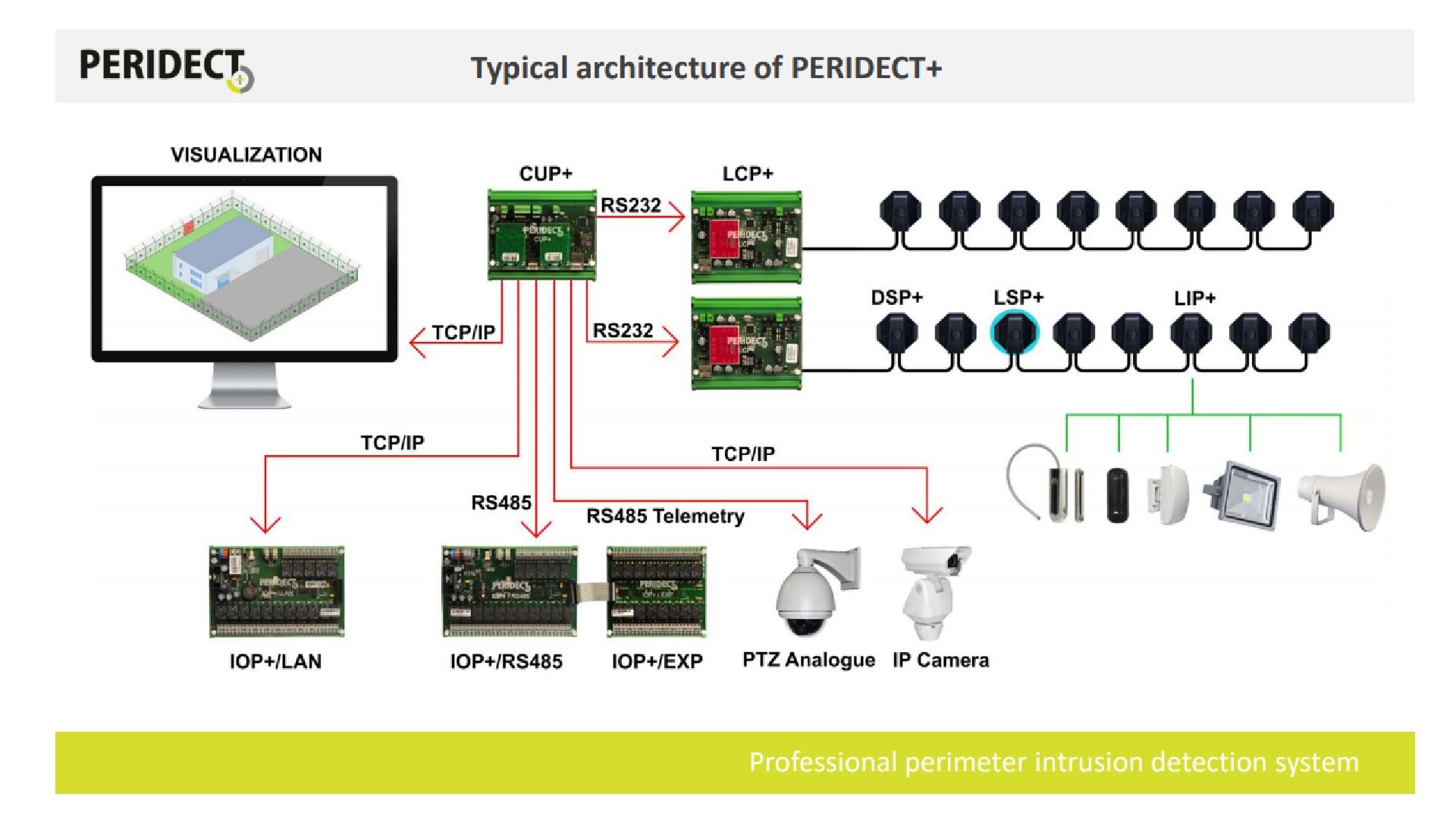

Typical architecture of Peridect+ system.
5 of 8

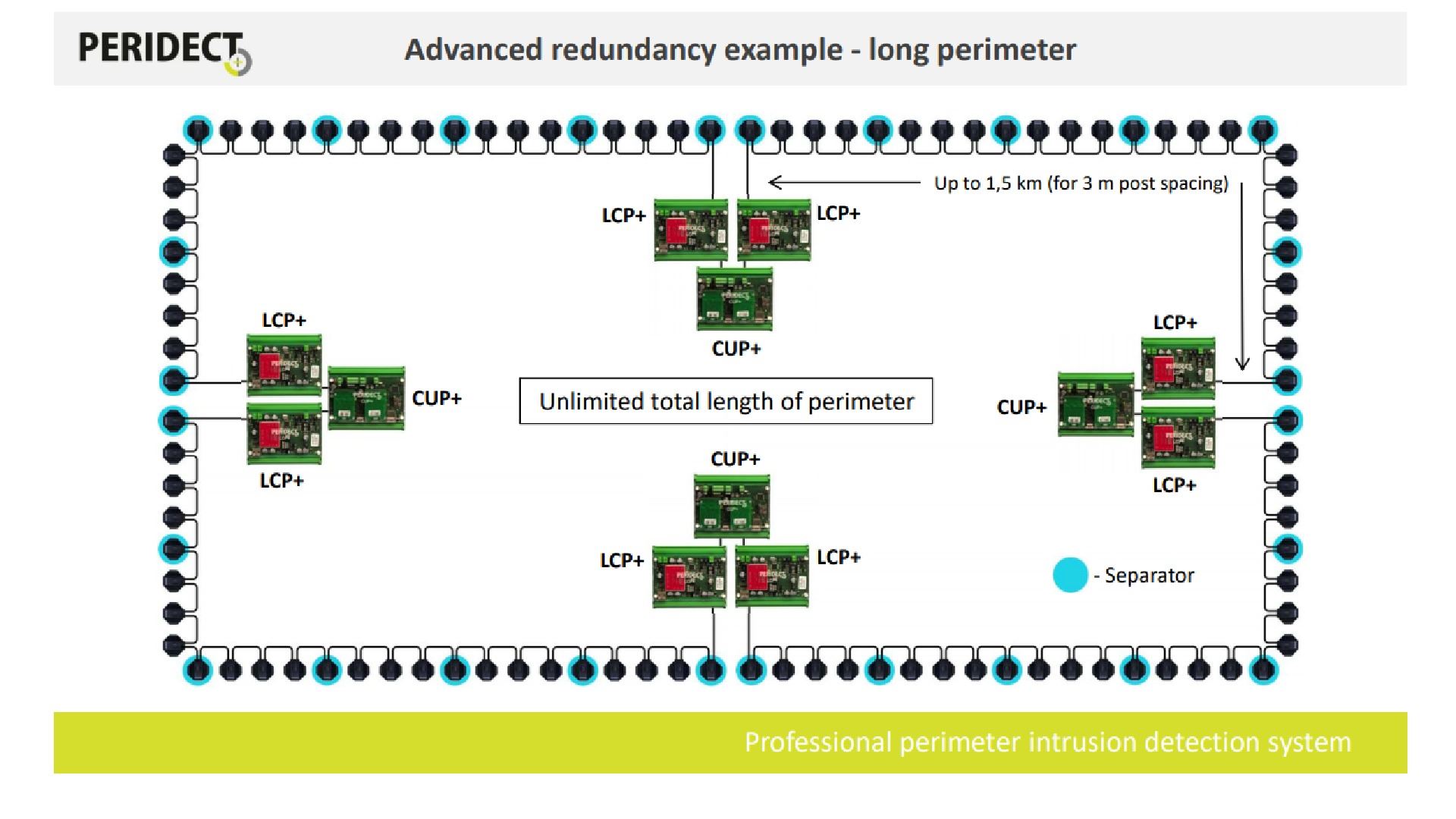

Advanced redundancy example - long perimeter
6 of 8

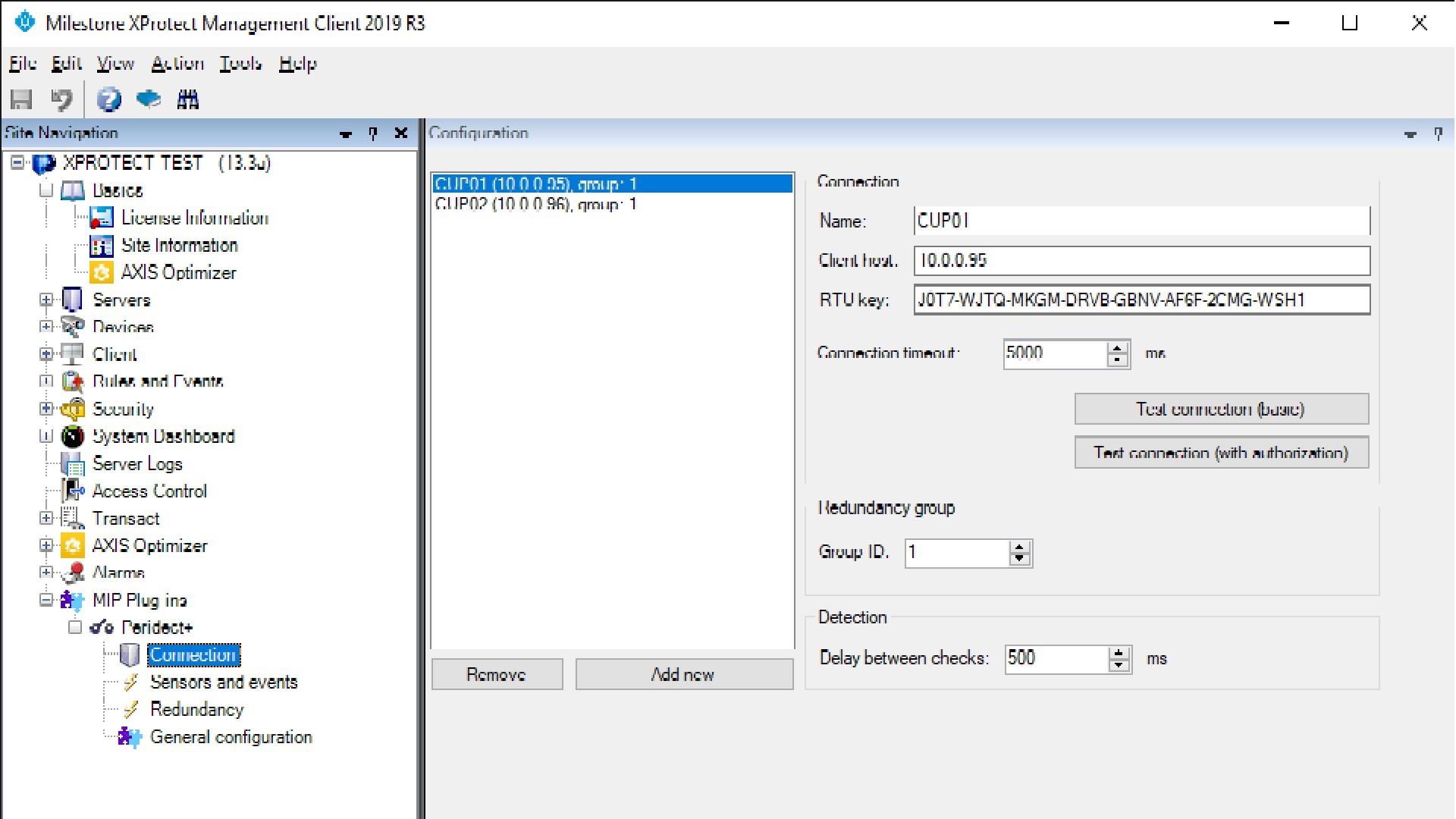

Connection configuration tab integrated into XProtect Management Client.
7 of 8

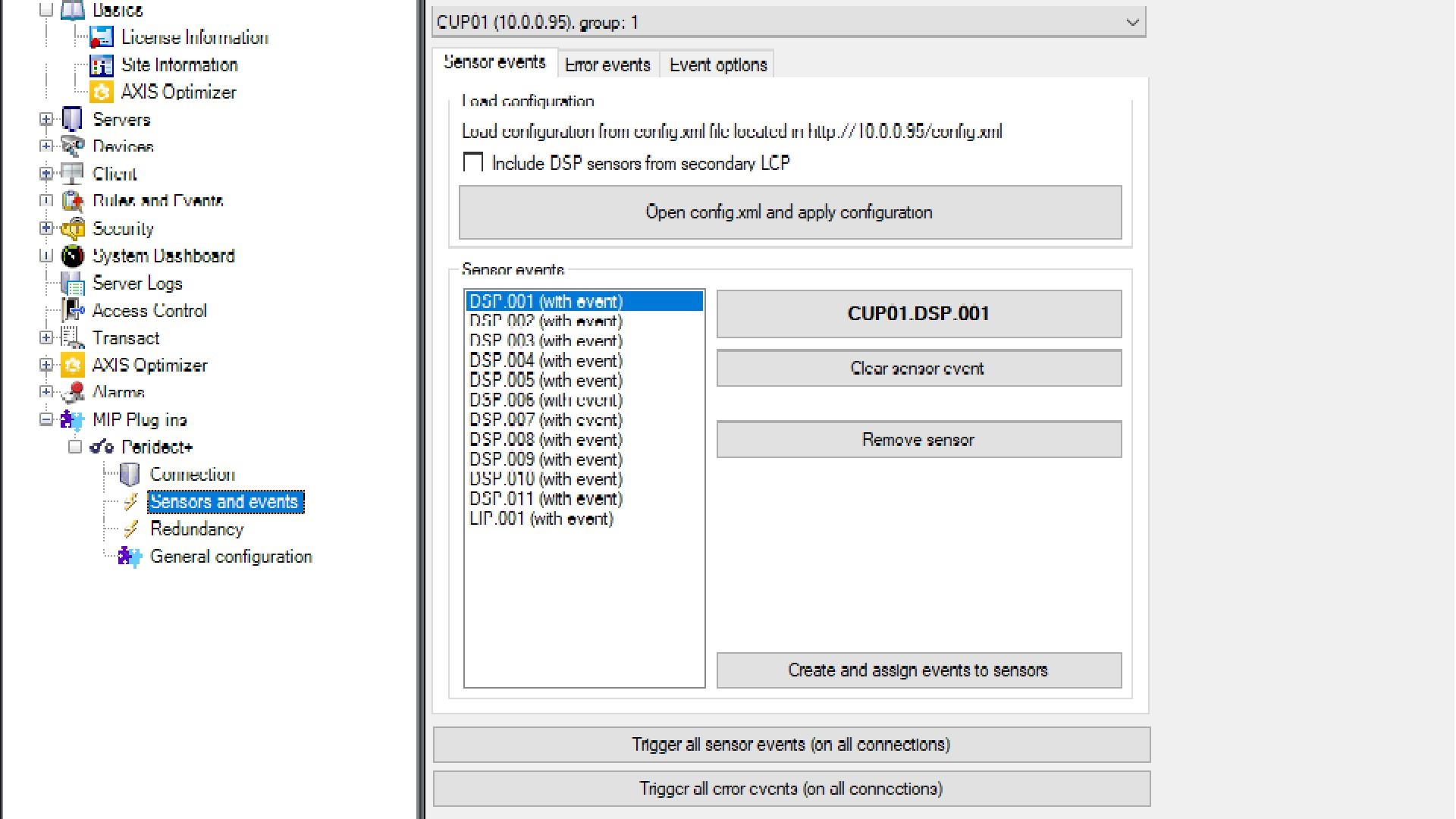

Sensors and events configuration tab allowing automatic or manual event assignment.
8 of 8

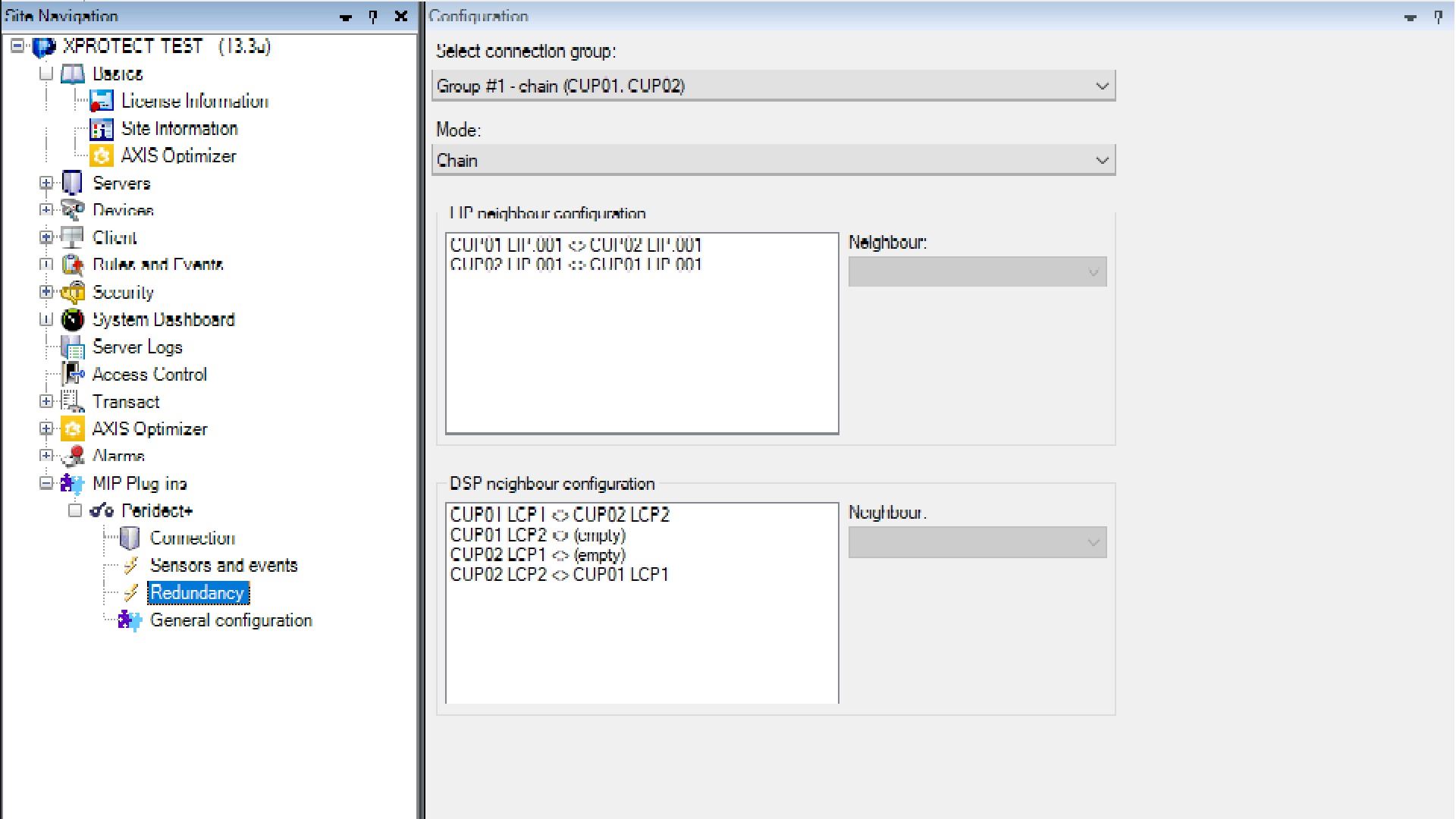

Redundancy options of the Peridect+ system.
How to install
Documentation
This is where you can find additional documentation
| Installation and configuration manual of Peridect+ Connector for Milestone XProtect | pdf Download (421.23 KB) |
| Peridect+ system description and RFI/RFP data | pdf Download (1.32 MB) |
| Peridect+ presentation | pdf Download (1.43 MB) |
| Peridect+ PIDS brochure | pdf Download (341.42 KB) |
| Peridect + detection line brochure | pdf Download (256.58 KB) |
| Peridect+ evaluation unit and modules brochure | pdf Download (295.91 KB) |
Milestone Verified
Read verification
Specification
Required PRODUS S.A. product(s)
Peridect+ connector v1.0.3.4
Has proven compatibility with the following Milestone versions:
-
XProtectProfessional2019 R2, 06/19 2019
-
XProtectCorporate2019 R3, 10/08 2019
-
XProtectExpert2019 R3, 10/08 2019
-
XProtectProfessional+2019 R3, 10/08 2019
Is also expected to work with:
-
XProtectProfessional2019 R2, 06/19 2019 and later
-
XProtectCorporate2019 R2, 06/19 2019 and later
-
XProtectExpert2019 R2, 06/19 2019 and later
-
XProtectProfessional+2019 R2, 06/19 2019 and later
