Galaxy® Dimension panels integrated into XProtect®
Get your GALAXY intrusion panels integrated into XProtect®. Monitoring, triggering alarms and rules
Updated on Sunday, June 19, 2022
Intrusion and CCTV in the same platform.
Receive alarms, trigger rules, send commands...
With Smart Client you can see the state of panels in a map and command them, their groups, their zones and their outputs with simple right click.
Receive alarms, trigger rules, send commands...
With Smart Client you can see the state of panels in a map and command them, their groups, their zones and their outputs with simple right click.
What is needed
From SGSE Soluciones Globales de Seguridad Electrónica
-
Galaxy Monitor
Honeywell Galaxy®
From Milestone Systems
-
Milestone XProtect
XProtect® Corporate 2019 R1 or higher
XProtect® Expert 2019 R1 or higher
XProtect® Professional+ 2019 R1 or higher
XProtect® Professional 2019 R1 or higher
XProtect® Express+ 2019 R1 or higher
XProtect® Express 2019 R1 or higher
XProtect® Expert 2019 R1 or higher
XProtect® Professional+ 2019 R1 or higher
XProtect® Professional 2019 R1 or higher
XProtect® Express+ 2019 R1 or higher
XProtect® Express 2019 R1 or higher
Overview
How it works
How to install
Overview
Galaxy® Dimension panels integrated into XProtect® - Get your GALAXY intrusion panels integrated into XProtect®. Monitoring, triggering alarms and rules
With this plugin, you will be able to connect to more than one panel simultaneously, may they be GD-48, GD-96, GD-264 or GD-520.Add the panel easily and configure the elements actually installed.
You can define alarms or rules based on events received from the panel.
You will be able to interact with the panel from a XProtect® map. You can arm, disarm or arm partially the whole panel or a specific group, omit or unomit a zone, and activate or deactivate an output.
Key features
- Full integration into Milestone XProtect® logic and interface: events, rules, alarms, user roles permissions, maps.
- Integration in XProtect® Maps, simple drag and drop and right-click commands.
How it works
1 of 8

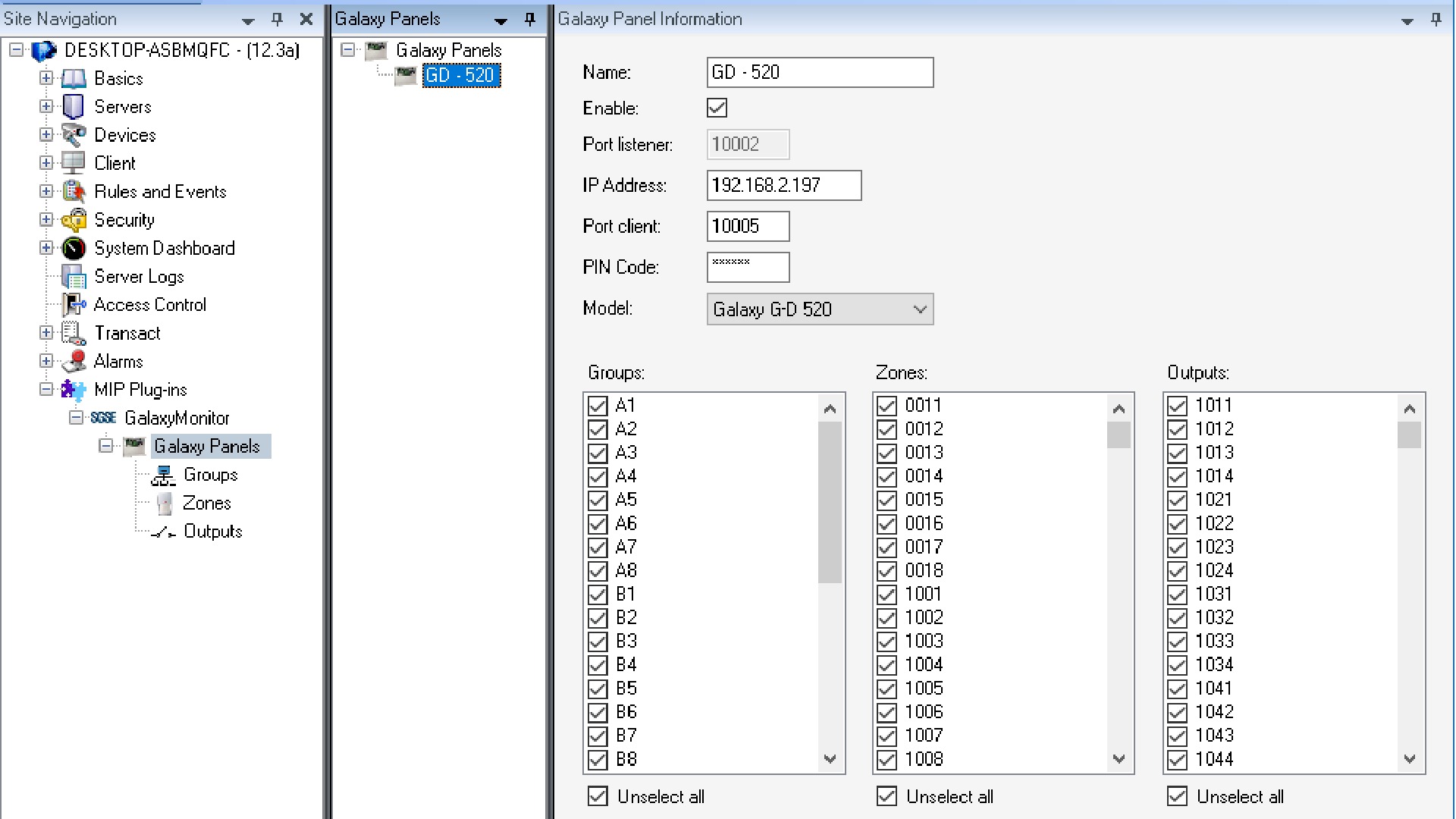

Configure the connection parameters and panel model. Then check all the items that are actually installed. They will be created automatically as Milestone items.
2 of 8

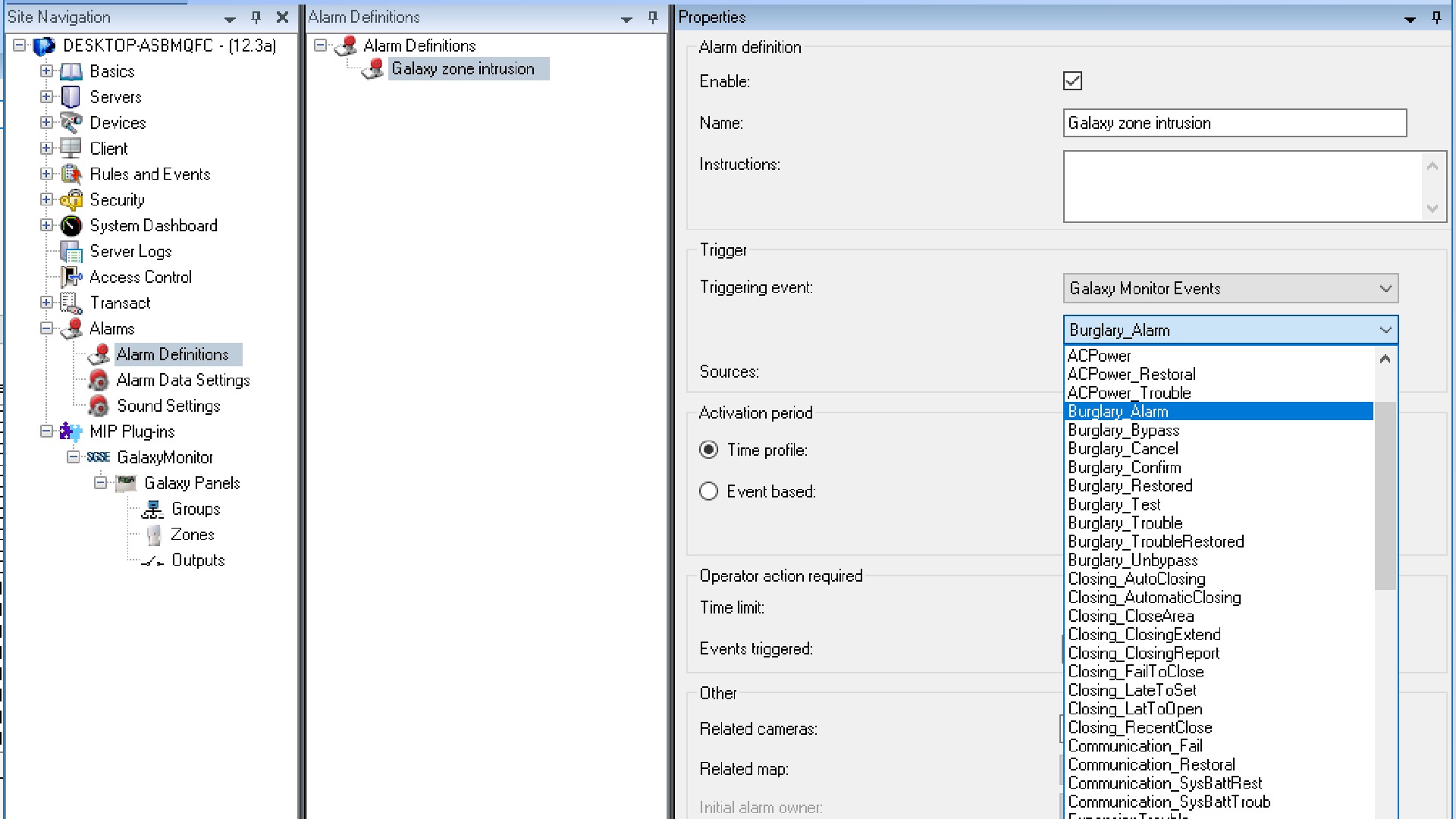

Define alarms based on any of the events that the panel sends.
3 of 8

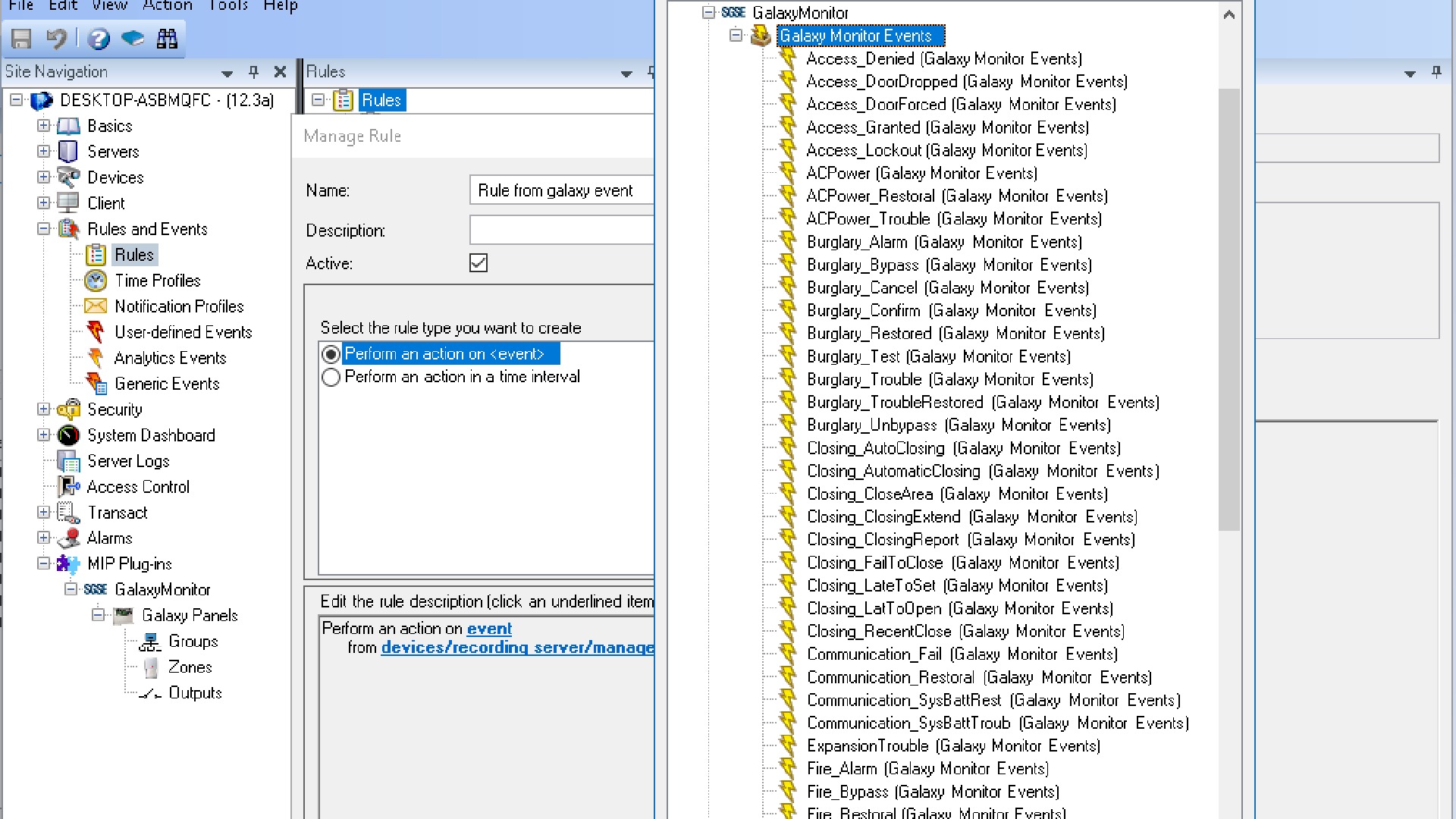

Define rules to be triggered by any event sent by the Galaxy Dimension panel
4 of 8

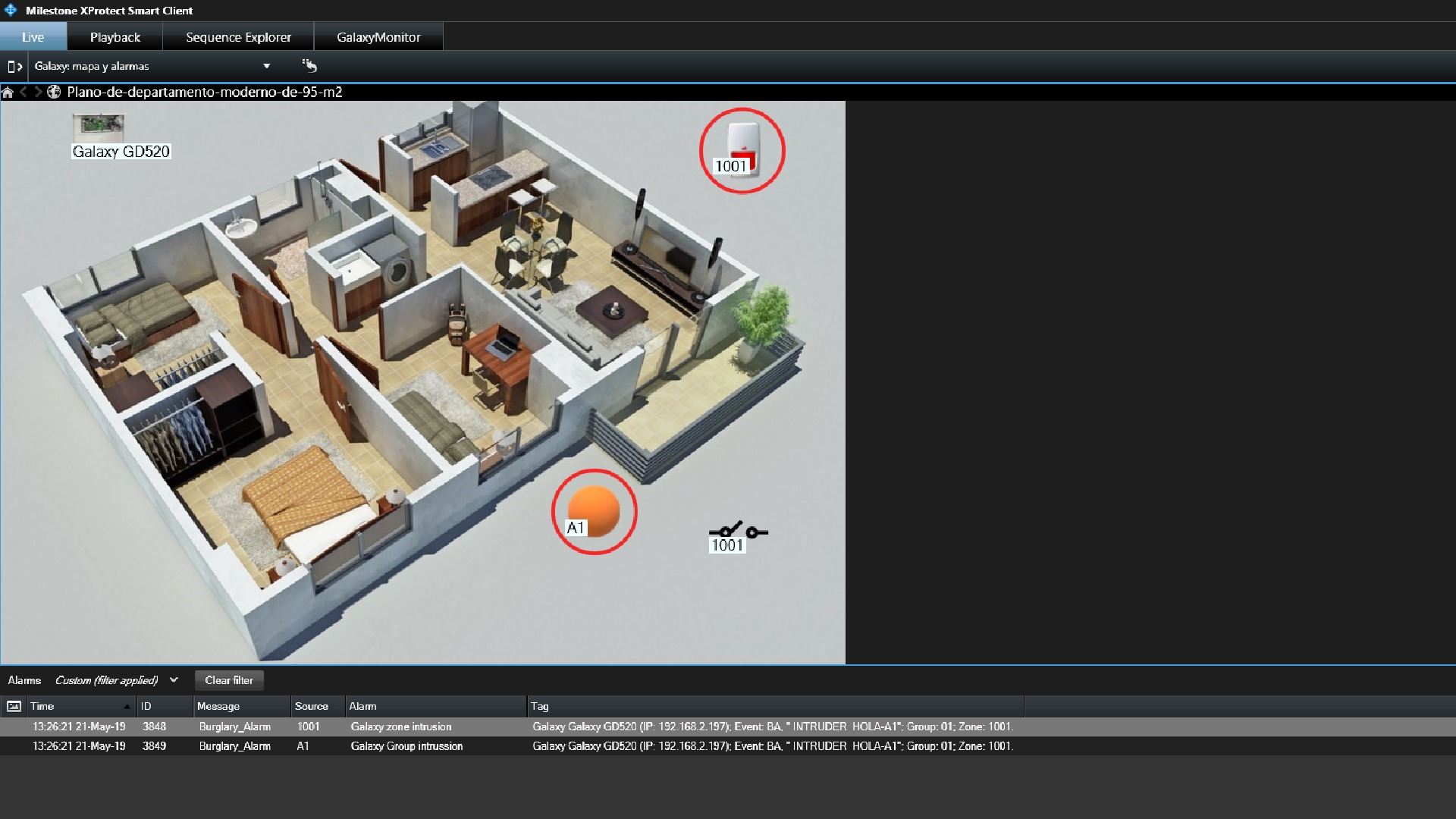

Display intrusion elements (panels, groups, zones, outputs) on a map and quickly see their satus and their alarms
5 of 8
Interact with intrusion elements from the map, just with item context menu
6 of 8
Integration of Galaxy intrusion panels into Milestone video (ENGLISH VERSION)
7 of 8
Integrazione in Milestone dei pannelli anti intrusione Galaxy di Honeywell (ITALIANO)
8 of 8
Integración de SGSE de los paneles Galaxy Dimension en Milestone (ESPAÑOL)
How to install
Documentation
This is where you can find additional documentation
| Galaxy Monitor - Installer and user manual (EN) | pdf Download (1.41 MB) |
Milestone Verified
Read verification
Installers
Here you can find more information about installers and installation guides
| Title | Installer Guide | Installer Software |
|---|---|---|
| N/A Download |
Specification
Required SGSE Soluciones Globales de Seguridad Electrónica product(s)
Galaxy Monitor
Has proven compatibility with the following Milestone versions:
-
XProtectProfessional2019 R1, 02/05 2019
-
XProtectExpress+2019 R1, 02/05 2019
-
XProtectCorporate2019 R1, 02/05 2019
-
XProtectExpert2019 R1, 02/05 2019
-
XProtectProfessional+2019 R1, 02/05 2019
Is also expected to work with:
-
XProtectProfessional2018 R3, 10/02 2018 and later
-
XProtectExpress+2018 R3, 10/02 2018 and later
-
XProtectCorporate2018 R3, 10/02 2018 and later
-
XProtectExpert2018 R3, 10/02 2018 and later
-
XProtectProfessional+2018 R3, 10/02 2018 and later
