MILESTONE

HUSKY IVO 1000R

Throughput
up to 1080 Mbit/s
Storage
up to 128TB
Channels
up to 150
CPU
CPU Intel® Xeon® 12-Core

See what a Milestone solution can do for you

Why Husky IVO 1000R?

Performance and redundancy for extra protection

Husky IVO 1000R (Rack) is a powerful 2U rack-mount appliance that supports more throughput, a larger storage capacity and the possibility to add analytics-supporting components. Ideal for larger critical installations.

  • Powerful unit, simple setup
    Combines powerful processor, extensive storage, and flexible options for redundancy
  • Future scalable
    Save time on installation and compatibility

IDEAL FOR THESE SOLUTIONS

Malls & larger retail stores

Large installations overseeingsafety and crime prevention

Airports & transport hubs

Complex 24/7 installations monitoring safety, traffic, and access control

City surveillance

Large-scale city surveillance, including traffic and safety monitoring

HAVE A CLOSER LOOK
AT HUSKY IVO 1000R

FRONT
BACK

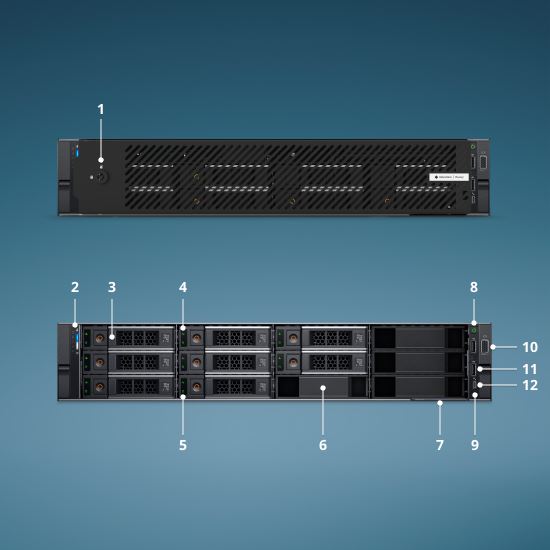

Overview of front components and features

  1. Left control panel
  2. Bezel lock
  3. 8 x 3.5" populated hard drive slots
  4. Non usable trays
  5. Drive status
  6. Drive activity
  7. Information tag
  8. iDRAC direct indicator
  9. iDRAC direct micro-USB port
  10. 2 x USB 2.0
  11. Power button
  12. VGA port

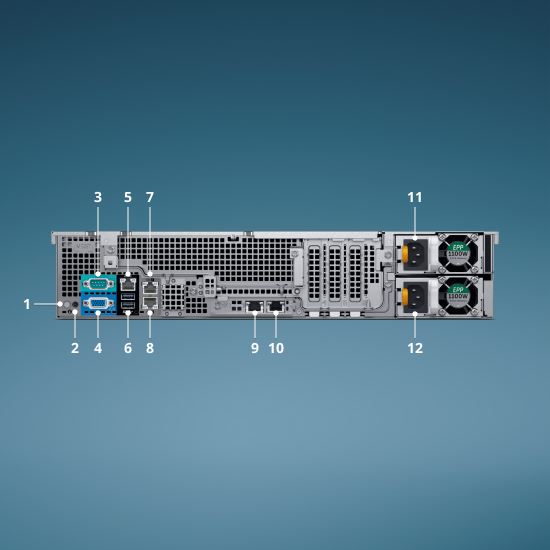

Overview of back components and features

  1. System identification button
  2. System status indicator cable port (CMA)
  3. DB9 serial com port
  4. iDRAC9 dedicated network port
  5. VGA port
  6. 2 x USB 3.0 Type-A
  7. NIC port 1
  8. NIC port 2
  9. LOM riser NIC port 1
  10. LOM riser NIC port 2
  11. Power supply unit 1
  12. Power supply unit 2

Husky IVO 1000R features and specifications

Performance

• Video throughput of up to 1080 Mbit/s
• Supporting up to 150 channels*
• Local storage up to 128TB on 8 internal drives


*Based on a video stream of 1080p, 30 FPS, 5-8 Mbit/s/channel, with video motion detection recording.

Hardware information

• Intel Xeon 12-Core CPU
• 16GB DDR4 RAM
• 8 x 3.5” hot-plug hard drives
• RAID Controller with multiple features
• iDRAC9 remote management
• 2U rack-mount form factor

Power consumption

• 750W up to 94% efficient (Platinum) hot-plug redundant
• BTU rating : 1535.1 BTU/h
Husky IVO Product Guide
