MILESTONE

HUSKY IVO 1800R

Throughput
up to 1800 Mbit/s
Storage
up to 384TB
Channels
up to 250
CPU
Intel® Xeon® 16-Core

See what a Milestone solution can do for you

Why Husky IVO 1800R?

Ultimate throughput and storage
for critical surveillance.

Husky IVO 1800R (Rack) is optimized for high throughput, extensive storage and flexibility. This is the ideal, high-end choice for larger and complex critical video installations such as airports, malls and transport hubs.

  • Get even more from XProtect®
    A server-grade, 2U rack-mount unit with powerful
    components and full redundancy
  • Future scalable
    Flexible storage configurations and extended
    camera compatibility

IDEAL FOR THESE SOLUTIONS

Malls & larger retail stores

Large installations overseeingsafety and crime prevention

Airports & transport hubs

Complex 24/7 installations monitoring safety, traffic, and access control

City surveillance

Large-scale city surveillance, including traffic and safety monitoring

HAVE A CLOSER LOOK
AT HUSKY IVO 1800R

FRONT
BACK

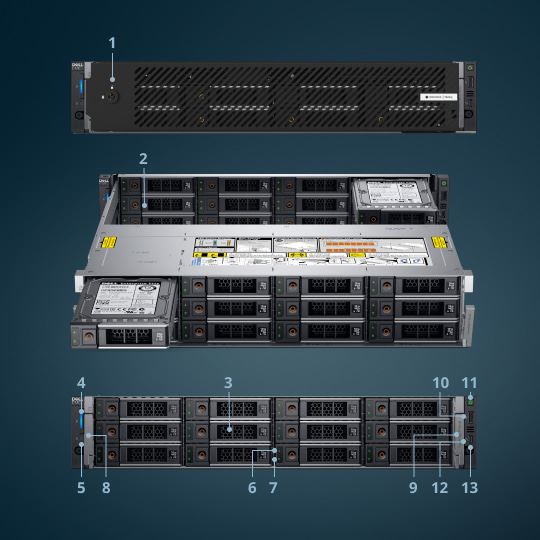

Overview of front components and features

  1. Bezel lock
  2. Drive bay 2 (12 x 3.5" hard drive slots)
  3. Drive bay 1 (12 x 3.5" hard drive slots)
  4. System health and system ID indicator
  5. Drive indicator
  6. Drive status
  7. Drive activity
  8. Left release latch
  9. Right release latch
  10. USB 2.0
  11. Power button
  12. iDRAC direct indicator
  13. iDRAC direct micro-USB port

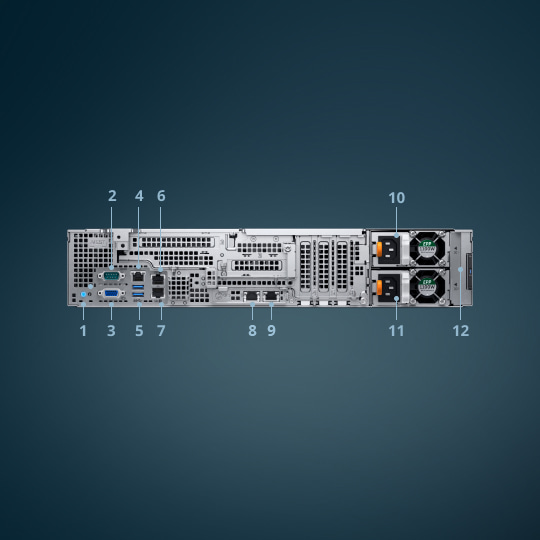

Overview of back components and features

  1. System identification button
  2. DB9 serial com port
  3. VGA port
  4. iDRAC9 dedicated network port
  5. 2 x USB 3.0 Type-A
  6. NIC port 1
  7. NIC port 2
  8. LOM riser NIC port 1
  9. LOM riser NIC port 2
  10. Power supply unit 1
  11. Power supply unit 2
  12. Information tag

HUSKY IVO 1800R FEATURES AND SPECIFICATIONS

Performance

• Video throughput of up to 1800 Mbit/s
• Supporting up to 250 channels*
• Local storage up to 384TB on 24 internal drives


*Based on a video stream of 1080p, 30 FPS, 5-8 Mbit/s/channel, with video motion detection recording.

Hardware information

• Intel Xeon 16-Core CPU
• 32GB DDR4 RAM
• Up to 24 x 3.5” hot-plug hard drives
• Available in 12 or 24-drives configurations
• RAID Controller with multiple features
• iDRAC9 remote management
• 2U rack-mount form factor

Power consumption

• 1100W up to 94% efficient (Platinum) hot-plug redundant
• BTU rating : 1635.4 BTU/h
Husky IVO Product Guide

GET HELP TO BETTER CONFIGURE YOUR INSTALLATION

GET STARTED NOW

Book a one-to-one demo

See Milestone in action with a demo that's customized to your business and needs.
